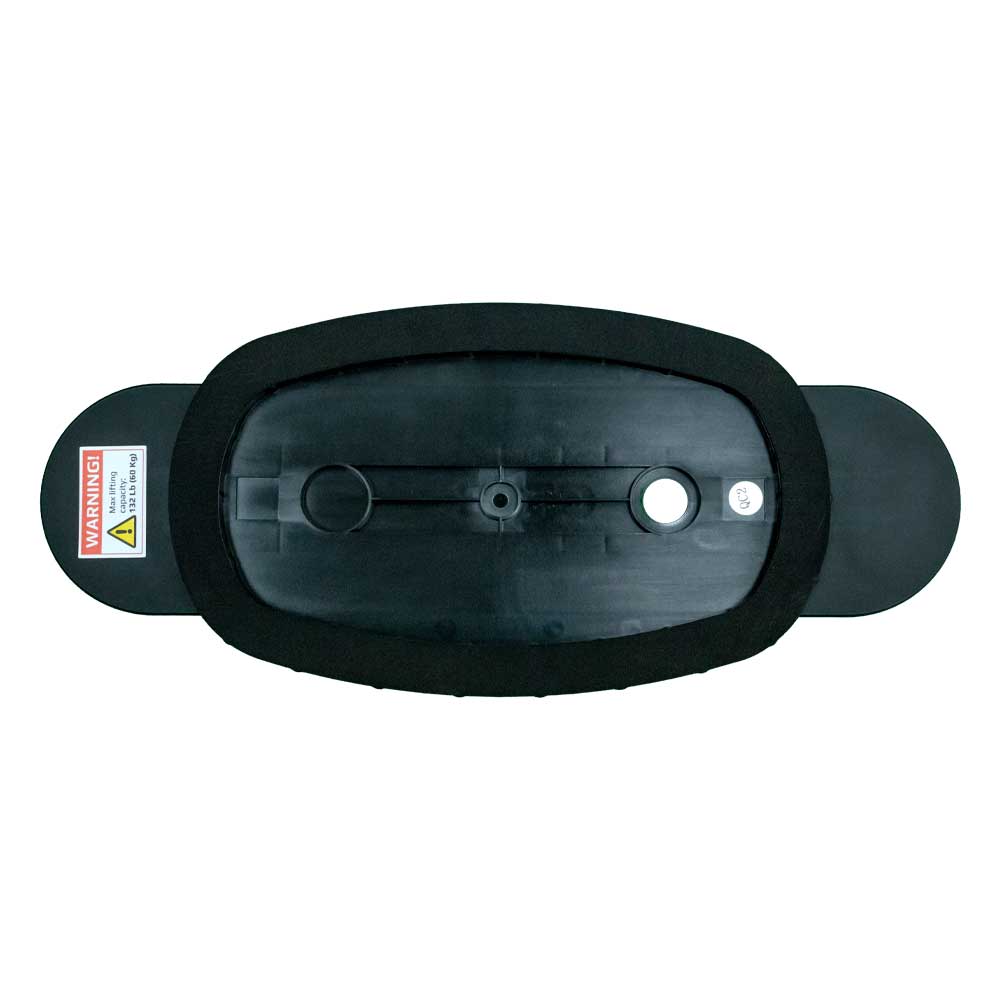

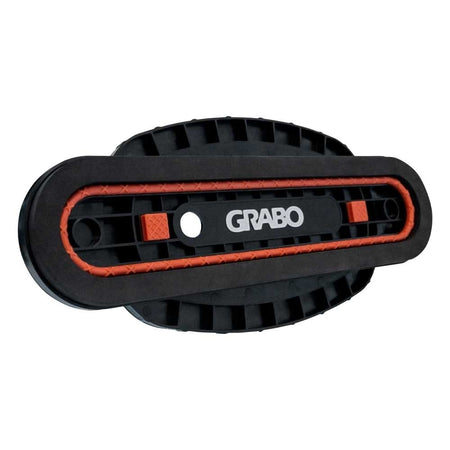

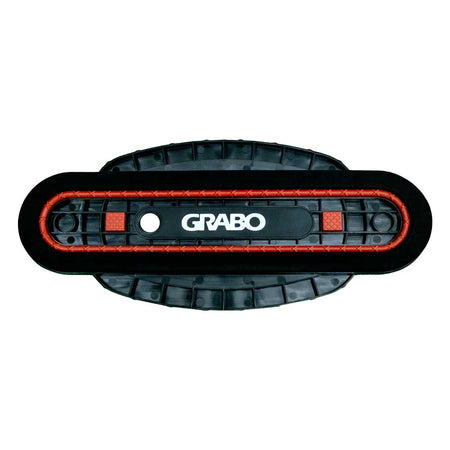

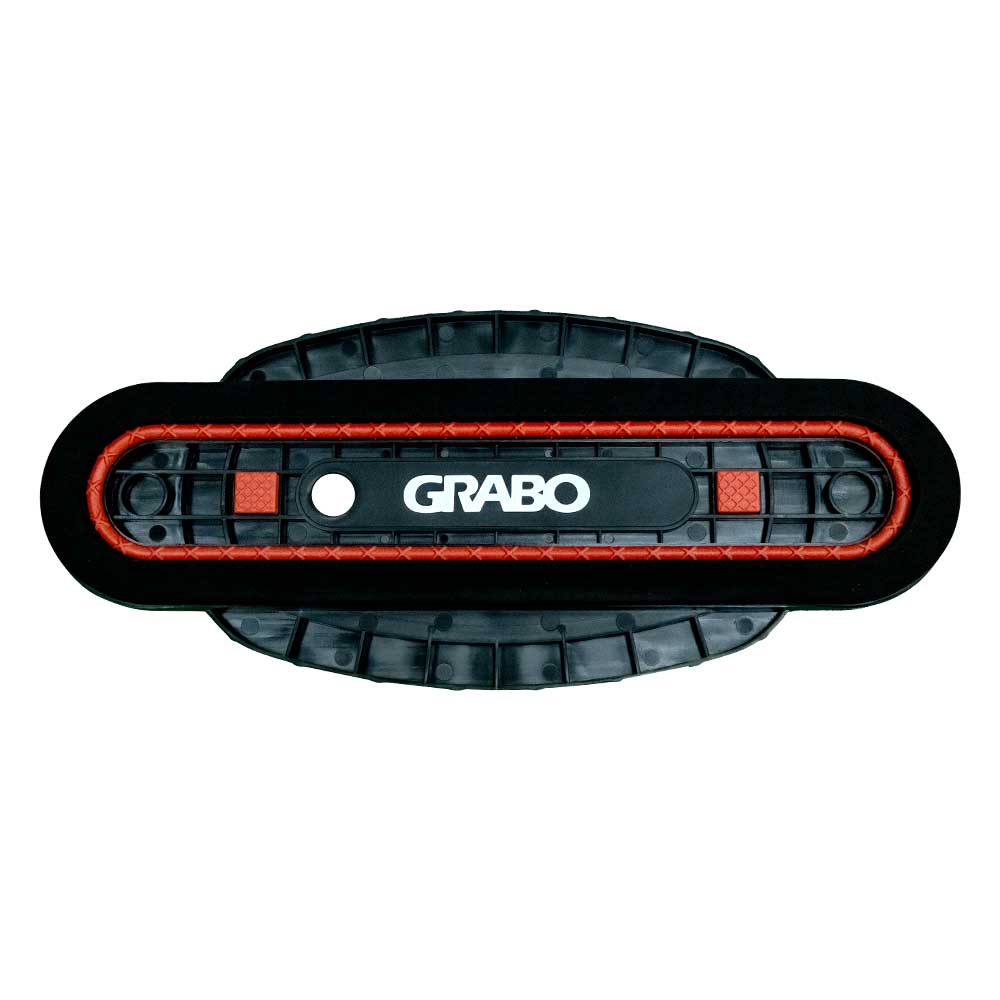

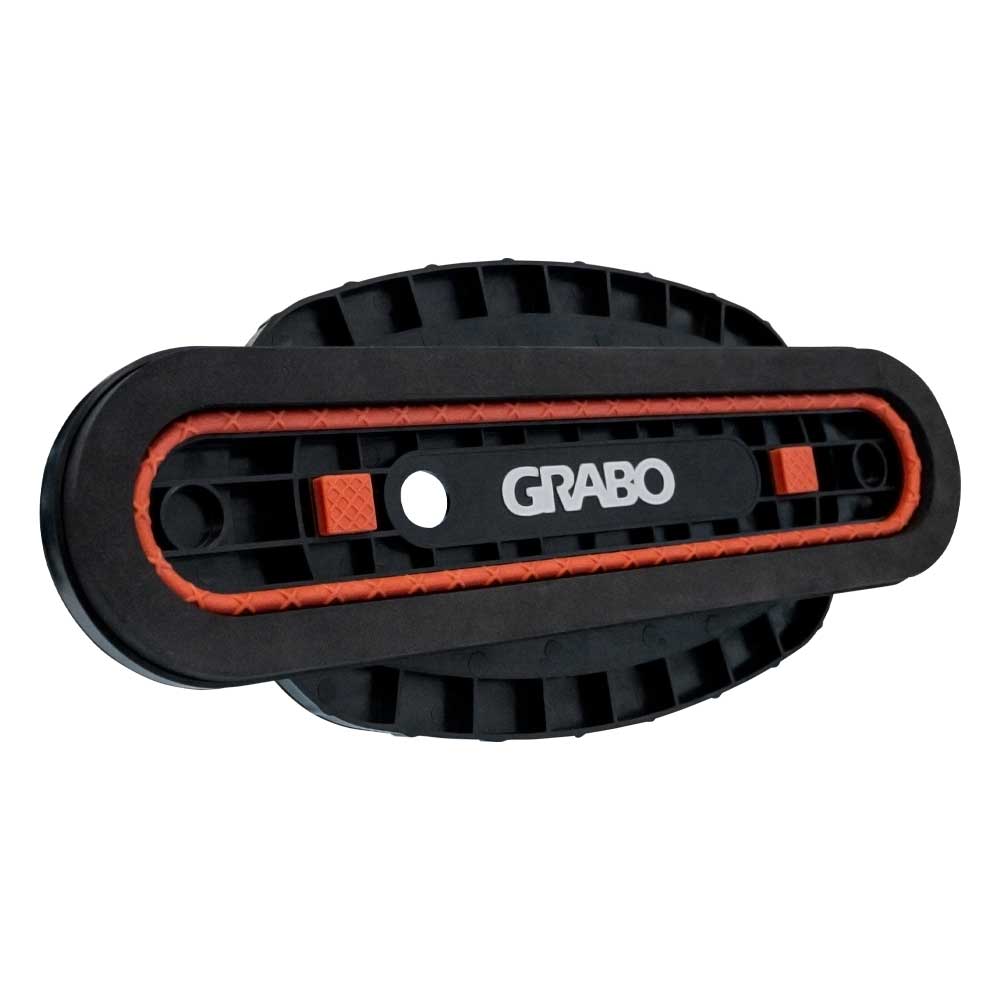

Slender Seal for AHN90 Nemo Grabo
Couldn't load pickup availability
Secure Shopping
Introducing the GRABO Slender Seal, an essential addition to GRABO models, designed to effortlessly lift thinner and longer materials with precision and ease. Engineered with a unique design, the GRABO Slender Seal excels in gripping extended, narrow surfaces, including pavers, long tiles, pipes, custom benchtops, kerb stones, and more.
Features & Benefits:
- Seamlessly interchangeable with the standard GRABO seal, facilitating hassle-free swapping between the two.
- Innovative design ensures a secure seal on challenging material dimensions.
- Capable of lifting up to 60kg (132lb) with ease and reliability.
Specifications:
|
Black foam seal |
|
|
Material |
SBR rubber foam sponge |
|
Color |
Black |
|
L x W x H |
16.2 x 6.9 x 1.24†(411 x 175 x 31.5 mm) |
|
Dimension of seal |
371 x 65 mm |
|
Density |
10.6 Lb/cft (170 kg/m^3) |
|
Hardness, Shore C |
10_2 |
|
Tearing pressure |
1800 Psi (126 kg/cm^2) |
|
Compression to 25% size at |
8.5 Psi (6000 kg/m^2) |
|
Lifetime (Compressions till performance reduction). |
~900 |
|
Water Absorption, % |
<=5 |
|
Shrinkage at 160F (70C) for 24 hrs, % |
<=20 |
|
Recommended Storage Temperature |
Room temperature |
|
Red seal |
|
|
Material |
Silicon Foam |
|
Color |
Red |
|
L x W x H |
16.2 x 6.9 x 1.24†(411 x 175 x 31.5 mm) |
|
Density |
40.5 Lb/cft (650 kg/m^3) |
|
Hardness, Shore C |
55_5 |
|
Water Absorption, % |
|
|
Recommended Storage Temperature |
Room temperature |
|
Full seal |
|
|
Features |
Combined seal on plastic frame Slender profile |
Lifting Capacity:
|
Perpendicular Hold Z |
Parallel Hold X |
Parallel Hold Y |
||||
|
Maximum value |
Safe value（50%) |
Maximum value |
Safe value（50%) |
Maximum value |
Safe value（50%) |
|
|
Glass |
264 lbs (120kg) |
132 lbs (60kg) |
110 lbs (50kg) |
55 lbs (25kg) |
220 lbs (100kg) |
110 lbs (50kg) |
|
Metal |
242 lbs (110kg) |
121 lbs (55kg) |
110 lbs (50kg) |
55 lbs (25kg) |
220 lbs (100kg) |
110 lbs (50kg) |
|
Wood |
187 lbs (85kg) |
94 lbs (43kg ) |
66 lbs (30kg) |
33 lbs (15kg) |
176 lbs (80kg) |
88 lbs (40kg) |
|
Rough Concrete |
264 lbs (120kg) |
132 lbs (60kg) |
110 lbs (50kg) |
55 lbs (25kg) |
220 lbs (100kg) |
110 lbs (50kg) |
Product code: AHN900112
- SKU AHN900112
